Construction plywood manufactured in Vietnam generally falls into three distinct categories, and selecting the incorrect grade can lead to project delays and increased costs. Formwork buyers typically require film-faced panels bonded with phenolic WBP, scaffolding contractors prioritize anti-slip wire-mesh surfaces, and flooring substrate buyers demand high-density eucalyptus cores. Each grade utilizes different film specifications, adhesive chemistries, core species, and pricing structures.
This guide details these three primary plywood types with technical specifications to ensure your procurement orders are accurate and fit-for-purpose.
🏗️ Understanding Construction Plywood
Construction plywood refers to structural-grade panels designed to withstand severe on-site conditions, such as the hydrostatic pressure of wet concrete, heavy foot traffic on scaffold decks, and subfloor structural loads. These panels are engineered for mechanical performance and reusability rather than interior furniture aesthetics.
A shared requirement across all these types is the use of phenolic WBP glue. This adhesive passes a 72-hour boiling water test—a critical distinction from Melamine (MR) glue, which only passes a 12-hour test. This durability is essential when panels remain exposed to wet concrete or moisture for extended periods.
🎬 Film-Faced Formwork Plywood

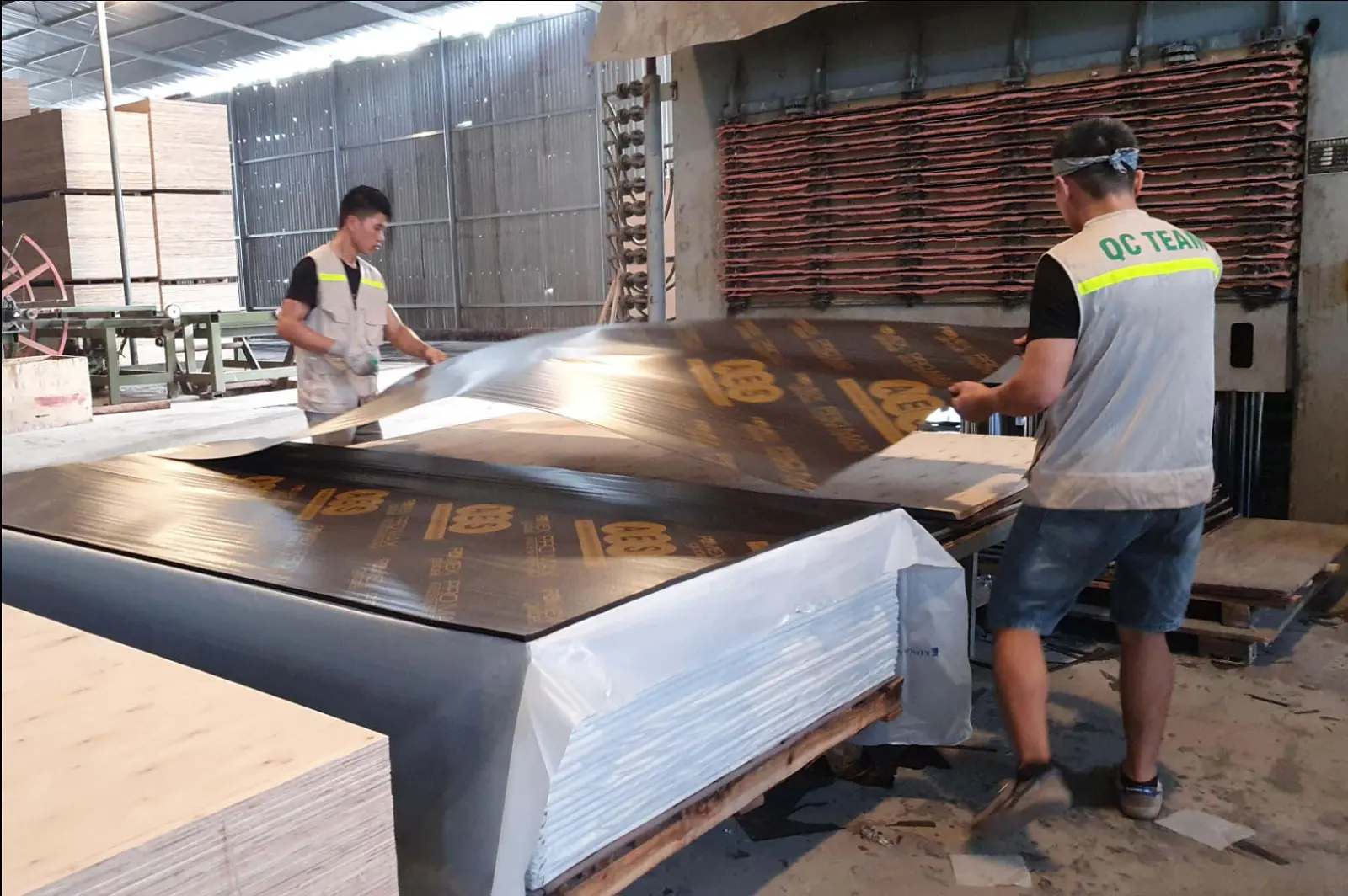

Film-faced panels are the most widely exported construction grade from Vietnam, consisting of a structural core bonded under heat and pressure with resin-impregnated paper (phenolic on the working face, melamine on the reverse).
Film Quality: Premium vs. Budget
-
Premium (Export-Grade): Utilizes AICA (Japan) film (135–200gsm), offering high surface hardness, concrete adhesion resistance, and edge-sealing with phenolic paint. These panels support 15–20 reuse cycles.
-
Budget (Domestic): Utilizes 100–120gsm film with lower hardness, often leaving edges unsealed, typically yielding only 4–8 reuse cycles.
-
Economic Impact: Premium-grade panels are more cost-effective per pour on projects requiring more than 10 uses.
Core Selection
Core density is directly proportional to bending stiffness, which must withstand concrete pressure (typically 24–48 kPa for standard wall forms).
-
Eucalyptus (650–750 kg/m³): Recommended for heavy-load columns and high-rise slabs.
-
Acacia (~580 kg/m³): Suitable for standard wall and slab formwork.
-
Styrax (480–500 kg/m³): Insufficient stiffness; not recommended for formwork applications.
🦺 Anti-Slip Construction Plywood

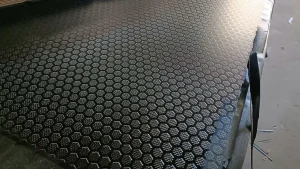

Anti-slip panels share the same structural core and phenolic WBP bonding as film-faced plywood but feature an AICA wire-mesh film (220gsm). This texture is heat-pressed into the film to create a permanent, raised surface profile.
-
Key Specs: Uses the same 12–21mm thickness range as formwork grade and meets occupational safety standards, such as EN 13374 Class B, for inclined walking surfaces.
-
Versatility: While designed for scaffolding and vehicle decks, many importers also utilize anti-slip panels for formwork where a textured concrete finish is acceptable.
🪵 Flooring-Grade Construction Plywood
Used primarily in timber-frame and light-steel-frame construction, flooring-grade plywood relies on the density of the core rather than a specialty film.
-
Performance: Full eucalyptus-core plywood (650–750 kg/m³) provides the dimensional stability necessary to resist shrinkage and expansion during seasonal moisture fluctuations.
-
Market Usage: Commonly specified in Australia (AS/NZS 2269), South Korea, and Middle Eastern commercial projects.
🔍 Technical Specification Matrix
💡 Procurement Best Practices
To ensure consistency in your order from Plywood ThanhdoLLC, your purchase order must lock in these four parameters:
-
Film Weight (gsm): Specify 135gsm minimum for standard work; 160gsm+ for high-reuse projects.
-
Core Species: Explicitly state “Eucalyptus” for high-load projects or “Acacia” for standard use.
-
Core Construction: Demand “stitched” or “edge-jointed” cores to prevent internal delamination under pressure.
-
Edge Treatment: Ensure edges are factory-sealed with phenolic paint to prevent moisture ingress.
📋 Export Certifications
Construction plywood intended for the EU requires CE marking (EN 636) and compliance with the EU Deforestation Regulation (EUDR), which mandates full geographic traceability of wood inputs. Plywood ThanhdoLLC provides the necessary documentation, including FSC certificates, CE Declarations of Performance, and phytosanitary papers, to ensure seamless import.
“The most common ordering mistake for new construction importers is failing to lock the film gsm and core species. Without these details, buyers often receive budget-grade panels instead of the export-grade performance they require.” — International Sales Manager, Plywood ThanhdoLLC.
